3. Stock, origin and tools#

Two things have to be true before a toolpath means anything: the app has to know what is on your table, and it has to know what is in your spindle. Get these right once at the start of a project and everything downstream — depths, the simulation, the feeds, the warnings at export — follows from them.

Setup: the stock#

Setup is the third tab in the sidebar. It fills the panel and leaves the view visible, so edits show up live.

Dimensions#

Width (X), Height (Y) and Thickness (Z) are the actual piece of material. Thickness is the one that does real work: a profile cut to 12 mm through 12 mm stock is what separates the part, and the simulation carves a block of exactly this depth.

Work origin#

Two separate questions, and both matter more than they look.

X0 Y0 is the nine-position grid — which corner or edge of the stock the machine's zero corresponds to. Bottom left is the default and is what most hobby machines get jogged to. Pick centre if you locate work from the middle, which is common with a fixture or a rotary axis.

Z0 is where the tool's zero height is:

Top of stock is the usual choice — you touch off on the workpiece with a piece of paper or a Z-probe and go. Bottom of stock suits work where the material thickness varies but the finished depth from the table must not, such as surfacing a slab.

Whichever you choose, the export review restates it back to you before the file is written. Read that line against how you actually zeroed the machine. Getting this wrong is the fastest way to plunge a cutter through a spoilboard.

Machine axes#

Most machines run +X to the right and +Y away from you, which is how the canvas draws the stock. Some run the other way round — X along the table's length, away from you, and Y across it. On those the drawing and the machine don't agree, and a part drawn landscape is cut portrait.

Tell the app which way your machine's axes run under Setup → Machine Limits → Machine Axes. The small picture shows your machine's X (red) and Y (green) as they lie on the drawing; Rotate turns them a quarter-turn at a time, and the line under the button says it in words:

The axis arrows at the origin on the canvas turn with it, so you can check the setting against the stock at a glance. Nothing else on the canvas moves: you keep drawing the stock as it sits on the table. What changes is the G-code — every coordinate is turned to your machine's axes as the file is written, and turned back wherever the app reads a program over the drawing (the simulator, the export review), so the toolpaths stay on their shapes.

• The origin stays the corner you picked on the drawing. Zero the machine on that corner of the stock and it is X0 Y0, whichever way the axes run. On a turned machine some of the job will be in negative X or Y — that is correct.
• It is a turn, never a swap. Machines are right-handed, so with +X up the drawing, +Y has to point left. Swapping X and Y in the post-processor instead would mirror the part and run every arc backwards — the post-processor editor warns if a template does that.
• The table width and height in Machine Limits are still the table as the drawing shows it, across and up.
• The Machine tab's go-to map turns to match when you press Rotate here, so it lies like the drawing.

The setting belongs to your machine, not to a project: it is kept with your other machine settings and travels in a settings file (.fkset), never in a .fkam. A project someone sends you comes out right on your machine.

Material#

The material is not decoration. Each has a hardness factor that drives the automatic feeds and speeds:

Aluminium and brass additionally carry a maximum surface speed, because the failure mode in metal is not a broken cutter but a bit that overheats and welds swarf to its own edge. If your spindle cannot run slow enough to respect it, the export review says so.

The tool library#

The Tool Library tab across the top holds your cutters. It is saved with the project and kept in the browser between sessions, so a new project starts with the tools you already own.

Folders#

The library is split into folders, shown as tabs above the table. My Tools is your own rack — the cutters you actually own — and is always there. Every other folder is a tool set you imported, and an import always lands in a folder of its own, so a vendor's 80-bit catalogue never mixes in with, renames, or overwrites the tools you set up yourself. The number on each tab is how many tools it holds; click a tab to show its tools.

• Rename a folder by double-clicking its tab.
• Delete a folder with the × on its tab (or Delete folder at the right of the bar). The dialog lists what goes, and keeps any tool the open project cuts with. My Tools can't be deleted.
• Move a tool to another folder with the folder icon in its row's Actions — pick a folder, or New folder… to make one. The tool keeps its identity, so toolpaths that use it are unaffected.
• Copy to My Tools (the copy icon, in an imported folder's rows) adds the bit to your own rack and leaves the folder as the vendor published it. This is how a catalogue bit you've bought becomes one of yours.

Add Tool adds to the folder you're looking at, and Export saves that folder as a .fkset file to share. (The whole library, every folder, goes out with Setup's Export — see settings files.)

Importing a tool set#

Import reads two kinds of file:

• a FreazyKam .fkset — a tool set a friend exported, or one of your own from another computer;
• a Fusion 360 tool library (.json) — the format most bit makers publish their catalogue in. Look on the maker's website for a Fusion 360 download.

A dialog asks which folder the tools go into — the maker's name by default (IDC Woodcraft), or the file's name — and lists what will be added before anything changes. Pick an existing folder to bring a catalogue up to date: tools already there exactly are skipped, and a changed one comes in beside the old as "Name (imported)", so importing the same file twice adds nothing. Your own tools are never touched. Typing My Tools as the folder is the one way to import straight into your rack.

From a Fusion 360 library, FreazyKam takes each bit's type, diameter, flutes, flute length, and the maker's starting RPM, feed and plunge, converted to millimetres. A few things are worth knowing:

• Bits FreazyKam can't model are left out, and listed. Round-over (radius) bits are the usual ones — the dialog names each one and why.
• A bull-nose or bowl bit comes in as a Bull Nose, keeping its corner radius.
• A V-bit's Max Z is worked out from its cone, not copied from the file — catalogues often get the flute length wrong (one lists a ½" 90° V-bit as 1.7 mm deep when its cone is 6.35 mm).
• A taper's angle comes in per side, and its Ø is the tip — the same conventions the library uses (below).
• The maker's chip load comes in as the bit's rating, in the Chip column — see below.

Restore Defaults puts back the tools FreazyKam comes with in My Tools — imported folders are not touched. It first lists what will be removed, which default tools come back, and which of yours are kept because the open project cuts with them — an operation names its tool, so those stay, or its toolpath would lose its cutter. It can't be undone with Undo, so the dialog offers Export a backup.

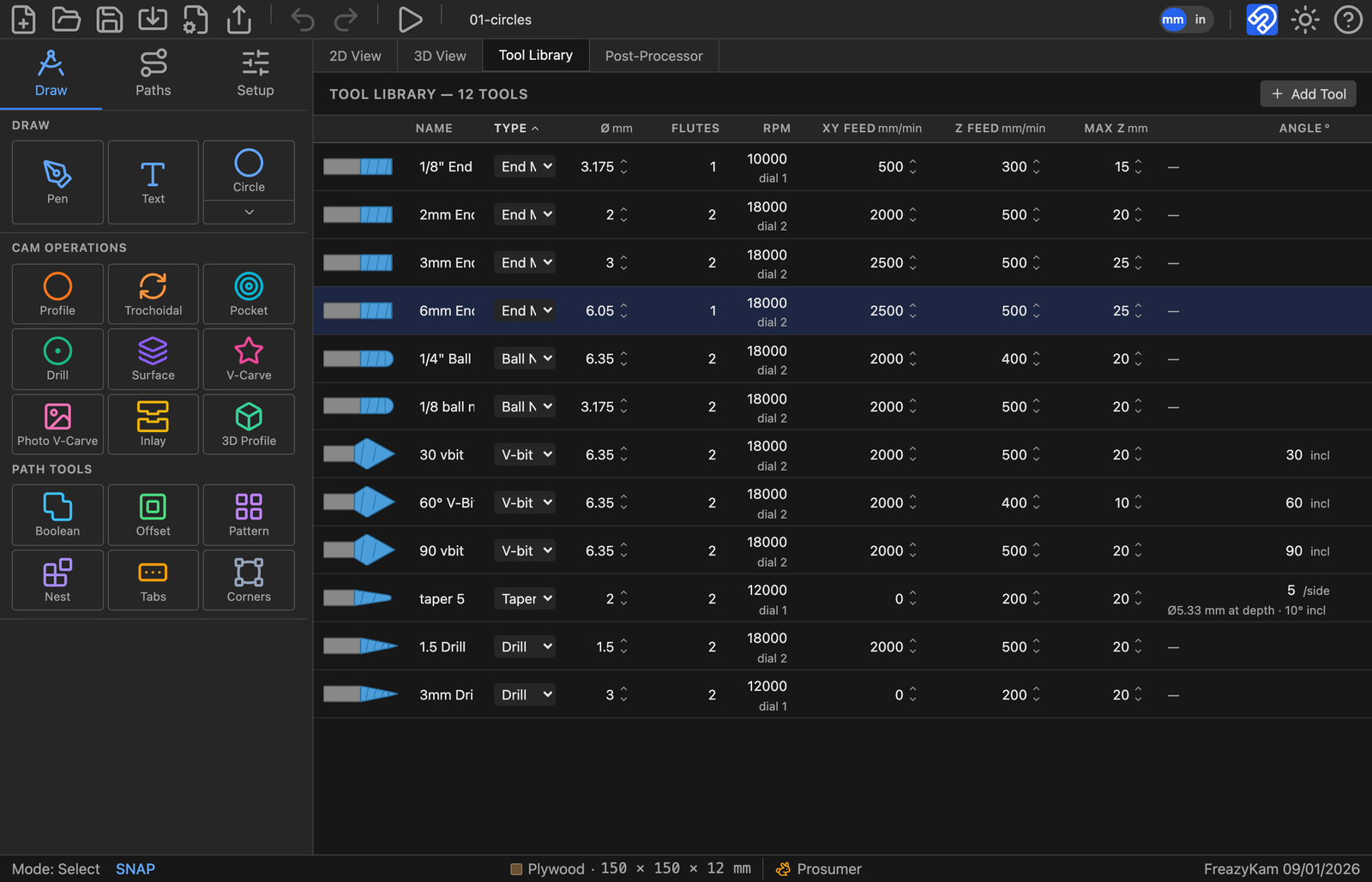

The table#

Each row is one cutter. The little picture at the left is drawn from that tool's own numbers, so a taper really does taper and a V-bit really does come to a point — a quick check that a row says what you meant.

Type decides where a tool can be used#

Peck drilling lists every tool, since anything can plunge — but it warns for an end mill (it must be centre-cutting), a ball nose (round-bottomed hole) and a taper (a cone). Surface offers end mills only.

If a cutter you expected isn't in an operation's list, it is the wrong type for that operation. Max Z does not hide a tool — ask for more depth than it has and the depth field warns Exceeds tool Max Z, leaving the decision to you.

Bull nose and bowl bits#

A bull nose has a flat bottom whose edge is rounded into the side by a corner radius, R in the Angle° / R column. A bowl bit is a bull nose with a big corner: the 1" IDC bowl bit has a ⅜" corner, so only the middle ¼" of its bottom is flat. Set R to 0 and it cuts like an end mill; set it to half the diameter and it is a ball nose. When you switch a tool to Bull Nose, R starts at a quarter of its diameter.

It is offered wherever a flat-bottomed or round-bottomed cutter is: Profile, Pocket, Trochoidal, and 3D Profile for finishing or roughing. Two things to know:

• In a pocket, keep the stepover under the flat width (Ø − 2 × R). The passes are spaced as if the whole diameter were flat, so a wider step leaves low ridges between them — about 0.2 mm on the bowl bit at a 0.4" step.
• In 3D Profile it is modelled exactly, flat and corner, so it never cuts into the model. It works the model out on a finer grid when the corner is small, which makes a small-cornered bull nose slower to generate than a ball nose of the same size.

The two angle conventions#

This trips people up because the trade itself is inconsistent, and the library follows the trade rather than tidying it up:

• A V-bit's angle is the included angle — the whole opening. A 60° V-bit has 30° on each side of the axis.
• A taper end mill's angle is per side, which is how the bits are sold.

And a taper's diameter column is its tip, not what it cuts. Its widest cut comes from the tip, the angle and Max Z together: a 5°/side taper on a 2 mm tip with 20 mm of taper cuts Ø5.33 mm at full depth, and its included angle is 10°, for comparison against a V-bit.

The practical difference is at the bottom of a cut. A taper's tip is a small ball, so it can enter a groove narrower than itself and leave a round-bottomed cut instead of refusing the job — which is what makes it good for fine lettering and 3D finishing. A V-bit comes to a true point and closes tighter, which is why an inlay still wants one: a taper's rounded foot leaves a hairline gap at the finished face.

Feeds and speeds#

The bottom of the Setup panel decides how hard the machine is driven. Auto Feeds & Speeds is on by default, and it is the right default: it computes a feed, plunge feed, spindle speed and step-down per operation, from the tool, the material and your machine.

How the chip load is chosen#

The chip load is how thick a bite each tooth takes: feed ÷ (RPM × flutes). Auto Feeds picks it first and sets everything else around it. It depends on both the material and the bit:

• The material sets the scale. Pine takes a thicker chip than maple, and aluminium a far thinner one.
• The bit's size scales it. From 1/8" up the chip grows in step with the diameter (up to twice a 6 mm bit's). Below 1/8" it shrinks faster than the bit does, because a small bit is weaker for its size. A 1/16" bit takes about a third of a 1/8"'s chip, not half. Without that, a 1/32" engraving bit gets fed hard enough to snap.
• The bit's type adjusts it. A V-bit's point is fragile; a ball nose and bull nose cut with less of their edge.
• The bit's rated chip load (the Chip column) sets a ceiling: the chip never goes above it, whatever the material would take.

Your machine then trims it (rigidity, below), and the spindle speed is chosen so the feed your machine can manage still delivers that chip.

The rated chip load#

Every bit has a Chip column in the library: its rated chip load, the bite per tooth its maker recommends. It's a fixed property of the bit. The feed, RPM and flutes are what you set; the chip check judges them against this rating.

• Where it comes from. An imported bit carries its maker's figure. The factory tools are rated from their IDC-matched numbers. Tools from before the column existed were rated once from their own feed, RPM and flutes. Add Tool copies the selected row's rating along with everything else. A drill has none, since it plunges rather than side-cuts.
• Editing the feed, RPM or flutes never changes it. That's the point: if you set an RPM or feed that runs the bit too hot or too cold for its rating, the export review and the simulator's chip-load gauge say so — with Auto Feeds on or off.
• With Auto Feeds on, each cut aims for the lower of the rating and what the material and bit size call for, so it never feeds a bit harder than its rating.
• Making your own tool: type the rating from the maker's chart, or copy it from a similar bit, then set the feed and RPM you want; the check still has something to judge them by. Clear the field for no rating, and the material-and-size model is the only reference.

Machine rigidity#

The single most useful number here. It scales both how hard the app drives the chip and how deep a pass it takes:

Set it honestly. Too high and a flexy gantry chatters, deflects and leaves a wandering wall; too low and you spend hours cutting air-light passes. The status bar shows the icon at all times so an over-ambitious setting reads "hot" at a glance.

Spindle#

Set Min Spindle and Max Spindle to what your spindle can actually do — routers bottom out around 10 000. Auto mode picks a speed inside that range.

Then pick your spindle type under Spindle / Router. If you run a trim router rather than a VFD spindle, this is worth setting: the app knows the published speed charts for the DeWalt DW6xx / DWP611 and the Makita RT07 / RT0701C, and translates every RPM into the dial number you actually turn — dial 2, dial 2.5 — shown in the tool table, the simulation and the G-code comments. G-code S18000 is no use if your router has no idea what an S-word is. Any other router with a speed dial: choose Custom router and type its speed at each setting, 1 to 6, from the chart in its manual.

Choosing a dial router also sets Min and Max Spindle to its dial 1 and dial 6 speeds, so auto feeds never asks for a speed the dial cannot reach. You can still lower the max if you would rather not run the router flat out.

Max feed rate#

Max Feed Rate, under Machine Motion, is a hard ceiling, in mm/min. Set it to what your machine can move without losing steps, and the app will not exceed it.

This one has a consequence worth understanding. Chip load is feed ÷ (RPM × flutes), and it does not depend on how deep the pass is. So when the machine cannot feed fast enough to reach a sensible chip load, the correct fix is to slow the spindle down, not to take a shallower cut — and that is what the app does. A bit that is fed too slowly for its speed doesn't cut; it rubs, heats and dulls.

The chip-load gauge#

Whether the numbers are right is answered while the simulation runs, in the readout under the stock:

On manual feeds the app also suggests the feed that would put you back in the band. This is the honest check on everything in this chapter: set the stock, set the tools, then watch the gauge on a simulated run before you cut anything.

The model produces sane starting numbers, not shop-certified values. It knows your tool, your material and how stiff you said your machine is; it does not know your cutter is dull, your stock is a knotty board, or your workholding is a bit optimistic. Treat its output the way you'd treat a manufacturer's chart — a place to start.

Your settings in a file#

Setup → Settings File saves everything this browser keeps for you — machine, tool library, post-processors, last-used form values, the Machine tab's settings and interface choices — as one .fkset file. Use it to move to another computer or browser, to keep a backup, or to send along with a problem report.

Import… shows what's in the file, a checkbox per part, before anything changes:

• Tools and post-processors are added to yours by default — each row says how many are already in yours and how many it would add. One with the same name as yours but different contents comes in as a copy, "Name (imported)"; an identical one is skipped. Switch a row to Replace to swap yours for the file's instead — the way to move your own setup to a new browser without ending up with two sets. Tools the open project uses are kept either way.
• Machine, stock defaults, last-used form values (the settings each form opens with — every Generate remembers them), Machine tab and interface replace yours, so they start unticked — tick them when restoring your own backup, leave them when the file came from someone else.

Any replace turns the button red (Import and replace) and offers Export a backup first: settings aren't covered by Undo.

Restore default machine settings… puts the machine limits, feeds & speeds, motion and spindle back to how they came, after listing every setting that changes (Max feed: 4321 → 3000 mm/min). The stock, your tools and your post-processors aren't touched.

A project file (.fkam) is not a settings file: opening a project only ever loads the drawing and the tools it uses, never someone else's machine settings.
